Principle:

Tri-angle laser scattering flow cytometry for WBC differentiation and count

Impedance for WBC and PLT count

Cyanide-free method for HGB
Throughput:60 samples per hour

Calibration: Manual, auto and fresh blood calibration

Quality control:  3 level QC

Maintenance: Sample probe auto-cleaning

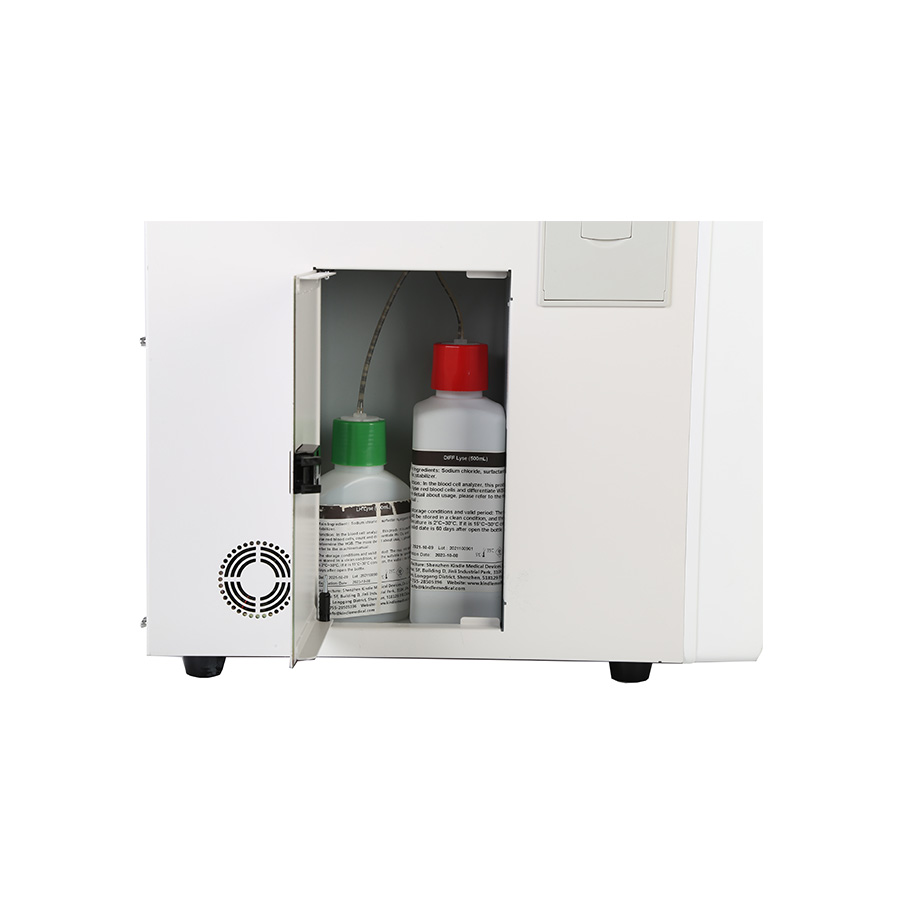

Reagents: 3 Reagents (2 Lyses + 1 Diluent); 1Probe cleanser for maintenance

Sample volume: CBC+DIFF mode: 20uL

                            Pre diluted mode: 20uL

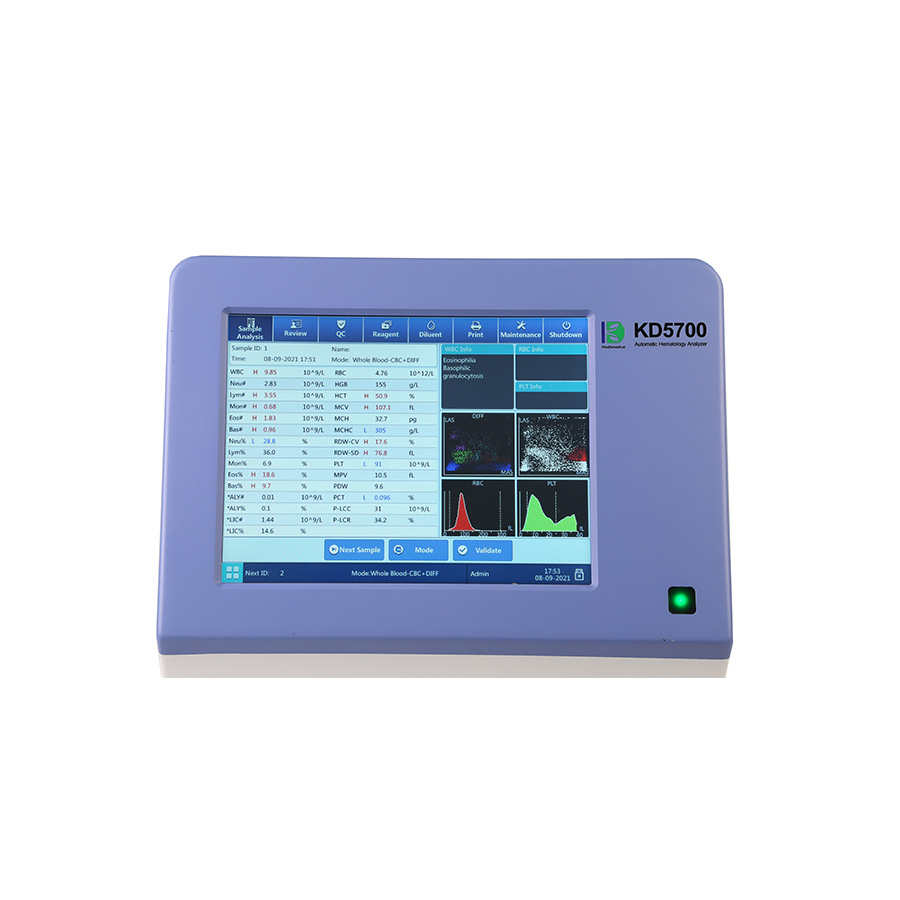

Display: 10.4-inch color touch screen (LCD)

Resolution: 800x600

Storage: 60,000 sample resuilts with scattergrams and histograms

Printout: Built-in thermal printer; Support external printer PCL6

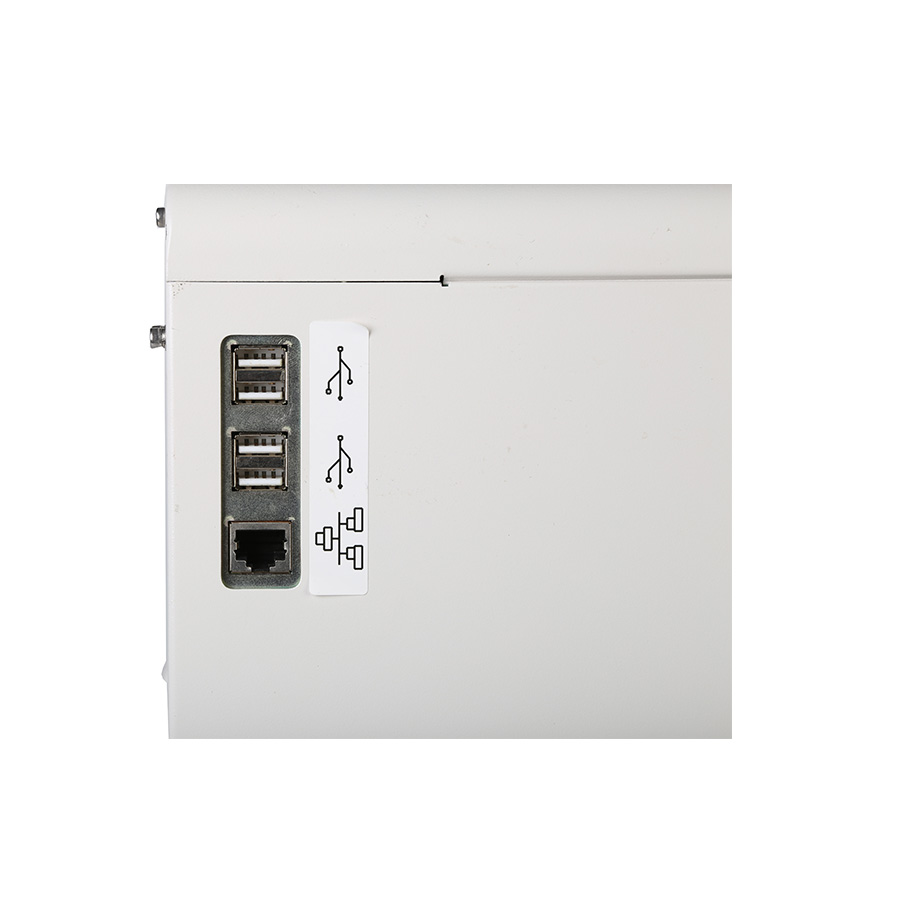

 Interface: 4 USB ports, 1Network port, HL7 protocol, support unidirectional lis connection

Blockage clear: High voltage, high pressure flush

Temperature: 10℃-30℃

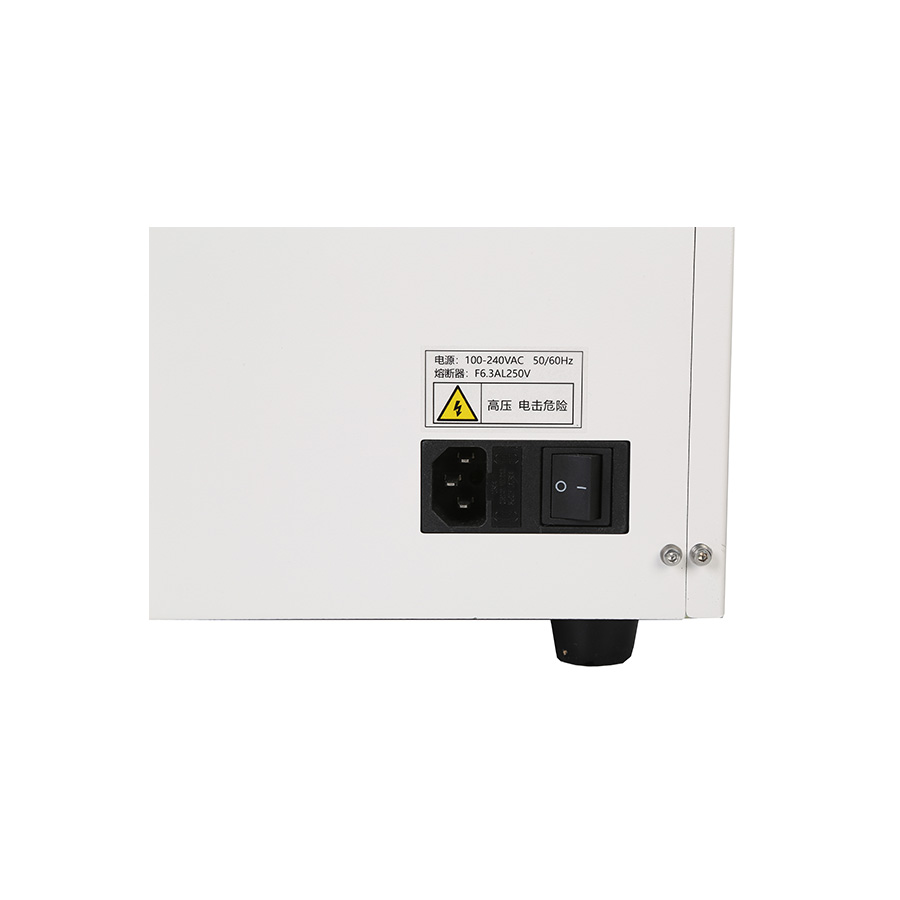

Power: AC 100-240V, 50/60±1Hz

Dimension: D430mm x W350mm x H430mm

Weight: 28kg
